Mixing
Planetary & Cake Mixer

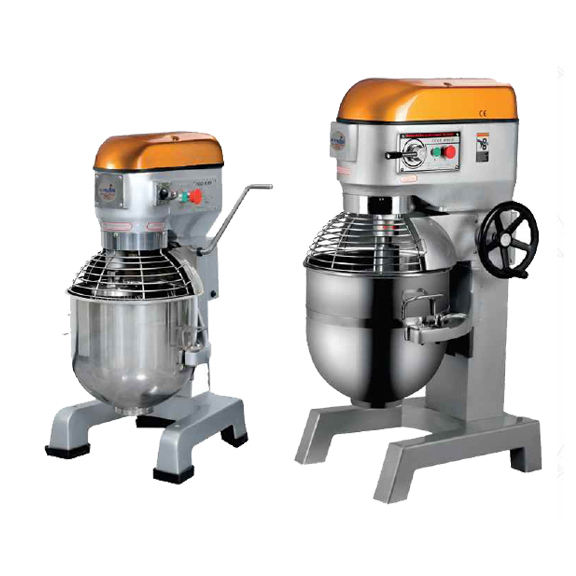

Planetary and cake mixers are the workhorse of every bakery — the beater travels around the bowl while spinning on its own axis, so batters, creams and doughs are mixed evenly with no dead zones. Kirthy supplies BT, BA, BH-B/K and BH-C/F series mixers from 10 to 80 litres with three-speed gearboxes, safety guards and stainless steel bowls, whisks, beaters and hooks. Compare every model below and get help choosing the right bowl size for your batch.
Capacity matchedSized to your batch and peak-day output
Delivered & installedSite readiness checked before dispatch
Serviced from ChennaiSpares, service and operator guidance
Choose a series
Planetary & Cake Mixer range
Each series is built for a different batch size and workload. Open a series to select a model and see its full specification.
Models
BT10BT20BT40BT60BT80Models
BA10BA20BA30BA40BA60
Models

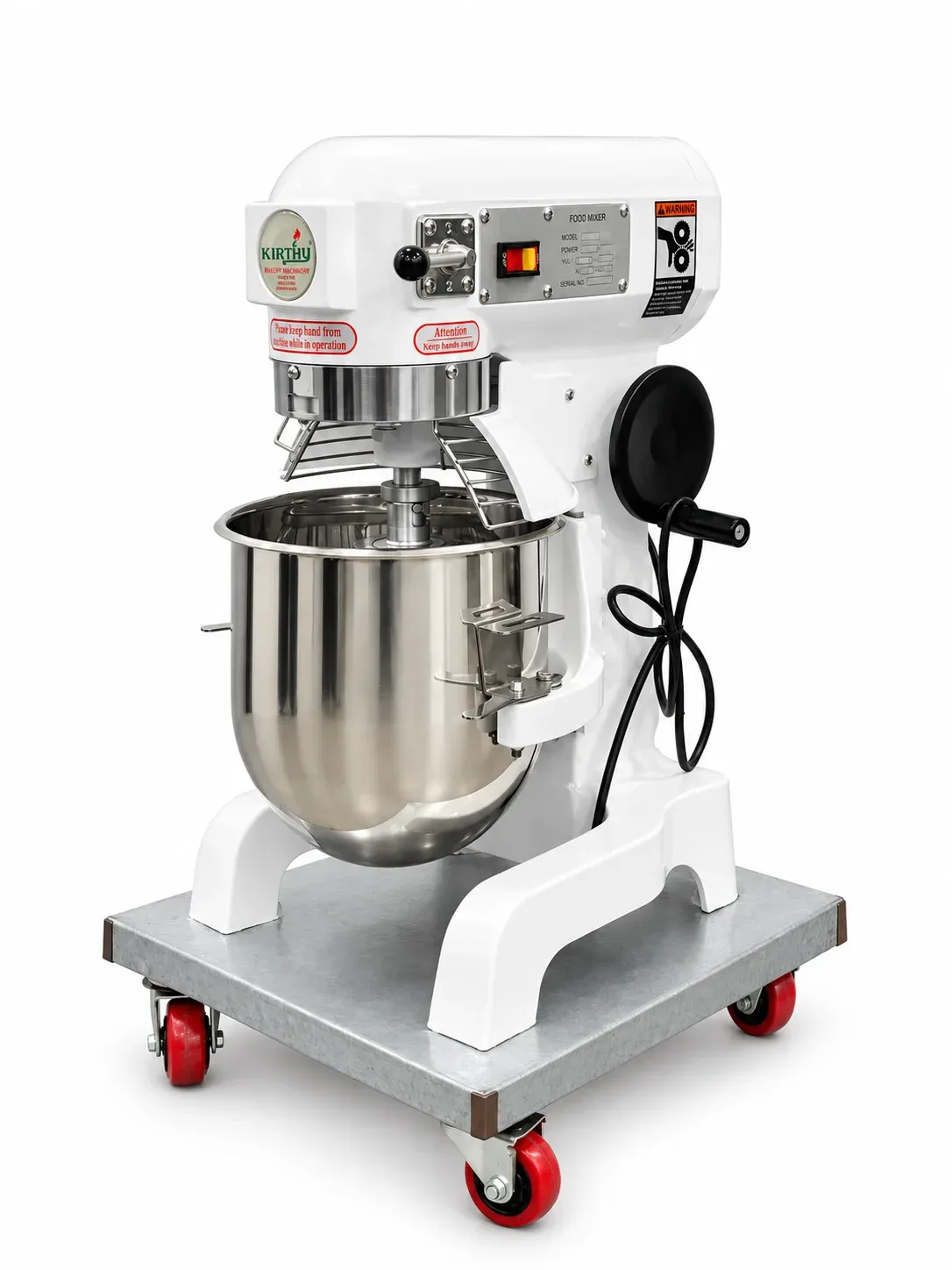

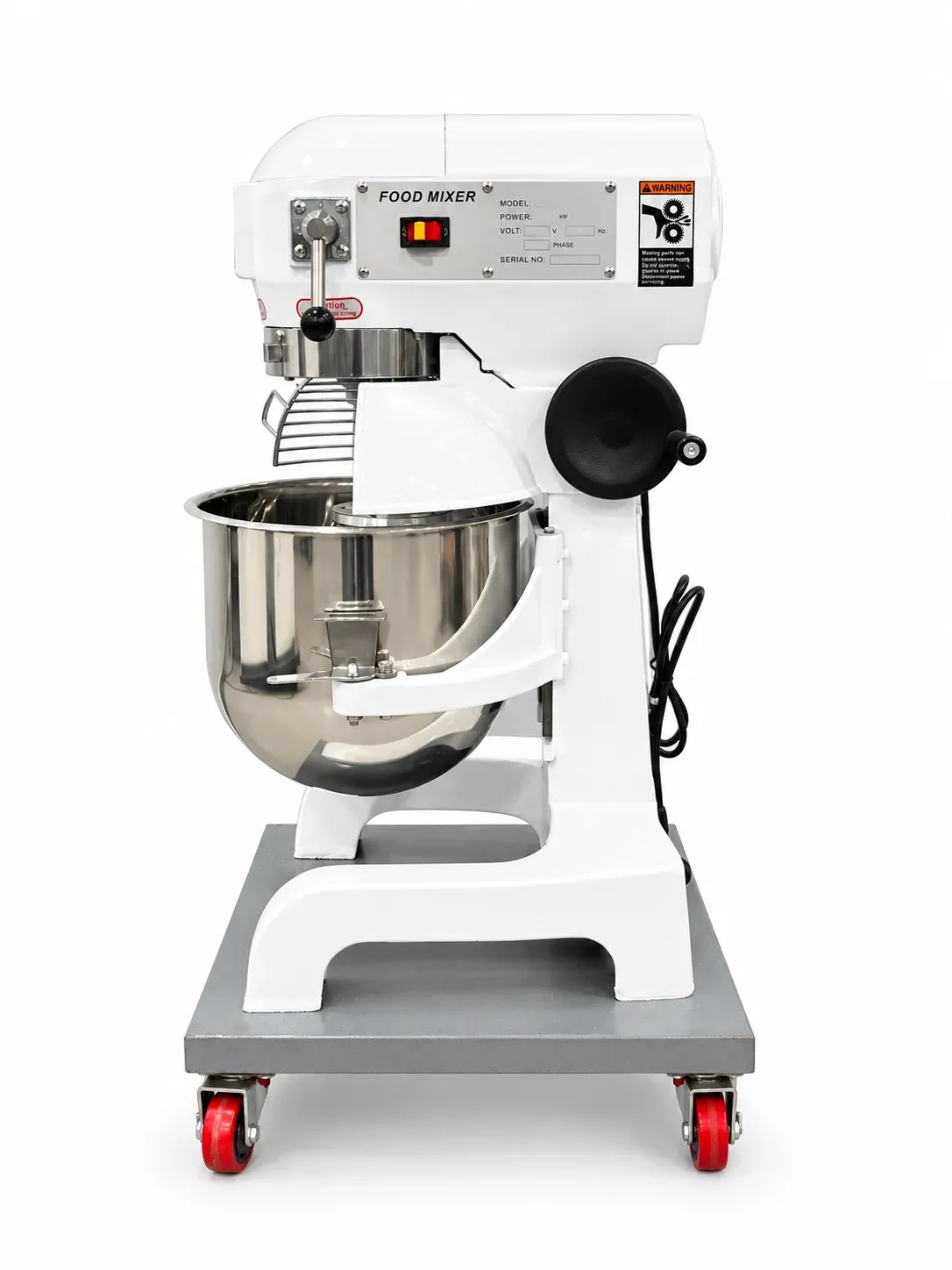

BH10B/KBH20B/KBH30B/KB40K4 models

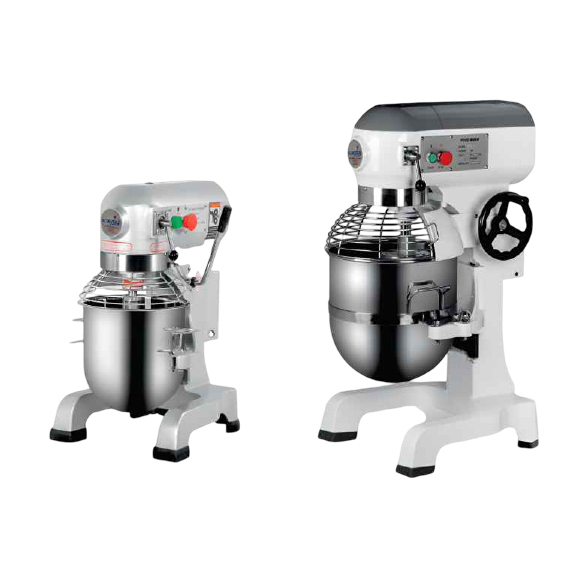

BH-B/K Series
Compact BH-B/K planetary mixers from 10 to 40 litres with three speeds, ideal for cake batters, creams and medium-hydration doughs in retail bakeries.
View models Enquire
Models
BH10CBH20FBH30FBH40FBH60F5 models
BH-C/F Series
BH-C/F planetary mixers from 10 to 60 litres with a robust gear drive and stainless steel bowl for consistent everyday mixing.
View models Enquire
Models & Specs
Compare every planetary & cake mixer model.

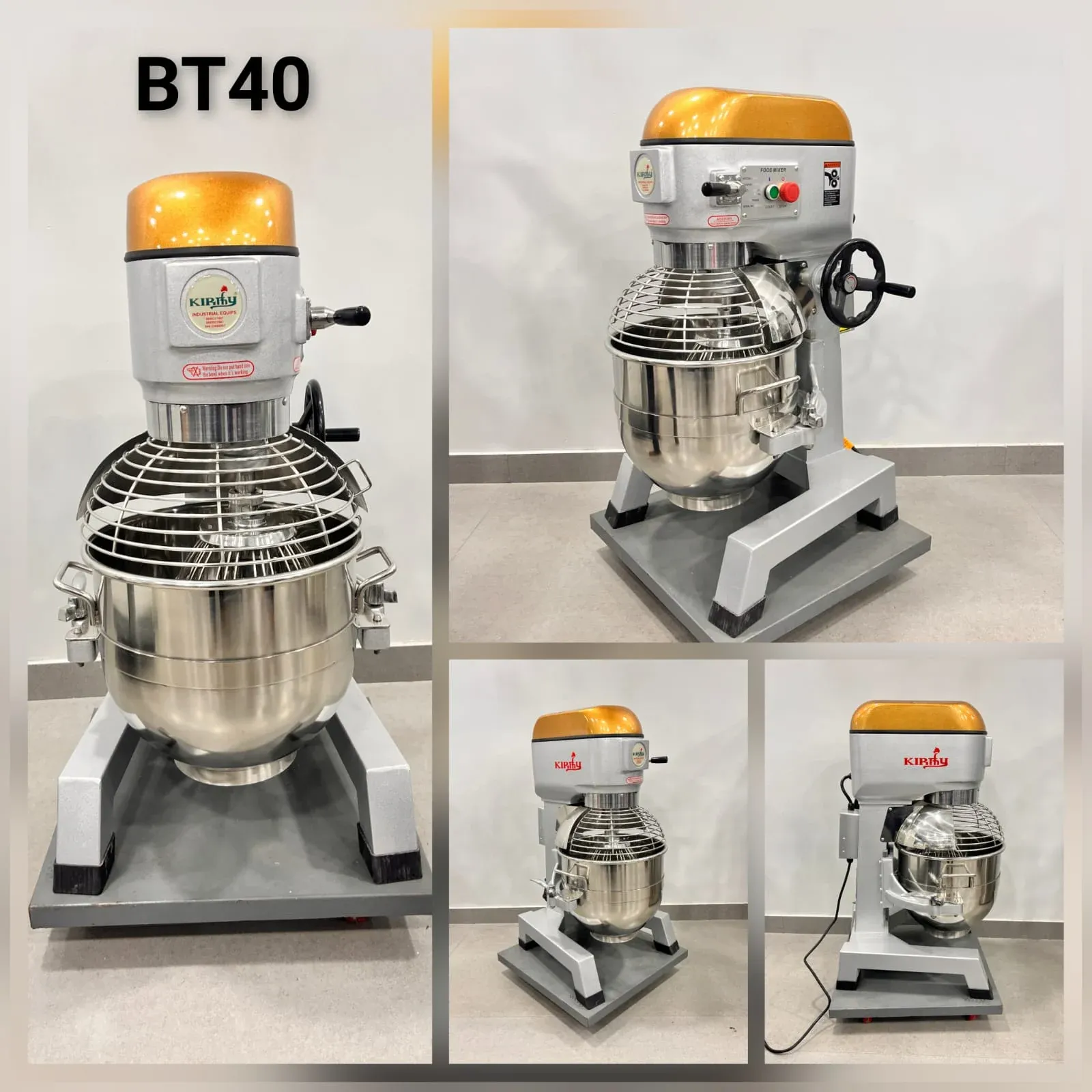

BT Series
Select a modelSwipe to compare all 5 models
| Model | BT10 |  BT20 | BT40 |  BT60 | BT80 |
|---|---|---|---|---|---|
| Voltage (V) | 220V | 220V | 220V / 380V | 380V | 380V |
| Power (kW) | 0.55 | 0.735 | 1.28 | 2.2 | 2.9 |
| Bowl Volume (L) | 10 | 25 | 40 | 60 | 80 |
| Max Kneading Capacity (kg) | 1.5 | 3 | 6 | 8 | 15 |

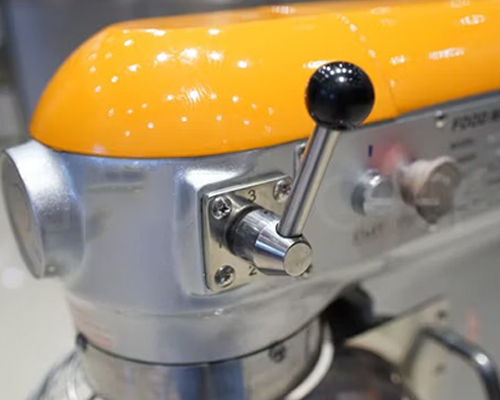

| Mixing Speed (RPM) | 110/178/355 | 110/200/420 | 80/160/388 | 74/155/388 | 75/111/220 |
| N.W. (kg) | 58 | 82 | 153 | 230 | 480 |
| Dimension (mm) | 450*432*680 | 835*525*500 | 637*630*1011 | 724*652*1300 | 1205*740*1660 |
BA Series
Select a modelSwipe to compare all 5 models
| Model | BA10 | BA20 | BA30 | BA40 | BA60 |
|---|---|---|---|---|---|
| Voltage (V) | 220V | 220V | 220V | 220V / 380V | 380V |
| Power (kW) | 0.55 | 0.735 | 1.1 | 1.28 | 2.2 |
| Bowl Volume (L) | 10 | 25 | 30 | 40 | 60 |
| Max Kneading Capacity (kg) | 1.5 | 3 | 3.5 | 6 | 8 |
| Mixing Speed (RPM) | 110/178/355 | 110/200/420 | 105/180/408 | 80/160/388 | 74/155/388 |
| N.W. (kg) | 58 | 82 | 103 | 153 | 230 |
| Dimension (mm) | 450*432*680 | 835*525*500 | 545*440*882 | 637*630*1011 | 724*652*1300 |
BH-B/K Series
Select a modelSwipe to compare all 4 models
| Model |  BH10B/K |  BH20B/K | BH30B/K |  B40K |
|---|---|---|---|---|
| Voltage (V) | 220V | 220V | 220V | 380V |
| Power (kW) | 0.45 | 0.75 | 1.1 | 2.2 |
| Bowl Volume (L) | 10 | 20 | 30 | 40 |
| Max Kneading Capacity (kg) | 1 | 3 | 3.5 | 8 |
| Mixing Speed (RPM) | 100/178/390 | 105/180/408 | 105/180/408 | 104/206/399 |
| N.W. (kg) | 60 | 80 | 103 | 165 |
| Dimension (mm) | 450*366*666 | 520*420*760 | 545*440*882 | 640*530*1000 |
BH-C/F Series
Select a modelSwipe to compare all 5 models
| Model |  BH10C | BH20F | BH30F | BH40F | BH60F |
|---|---|---|---|---|---|
| Voltage (V) | 220V | 220V | 220V | 380V | 380V |
| Power (kW) | 0.45 | 0.75 | 1.1 | 1.5 | 2.2 |
| Bowl Volume (L) | 10 | 20 | 30 | 40 | 60 |
| Max Kneading Capacity (kg) | 1 | 3 | 4 | 5.5 | 8 |
| Mixing Speed (RPM) | 100/178/390 | 110/200/420 | 110/200/420 | 80/160/310 | 74/150/388 |
| N.W. (kg) | 56 | 76 | 100 | 140 | 230 |
| Dimension (mm) | 450*350*640 | 540*450*860 | 545*488*925 | 620*630*1011 | 724*652*1300 |
Capacity, dimensions, power load and available variants are confirmed against your chosen model before quotation.
Why buyers choose it
Built for real production decisions.
Best for

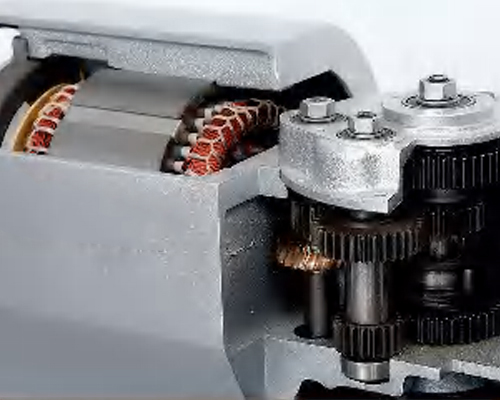

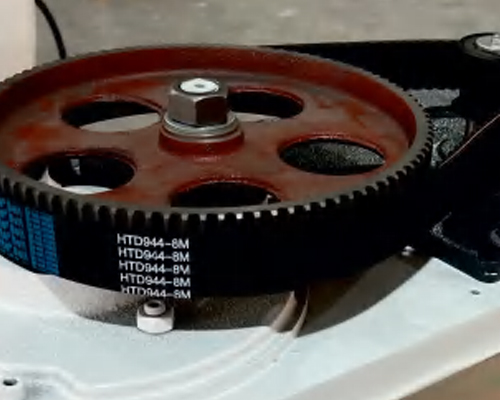

Belt-driven power

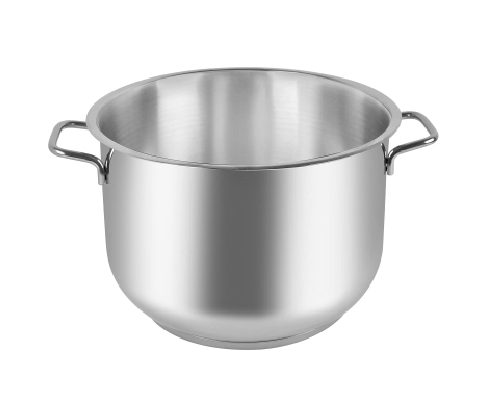

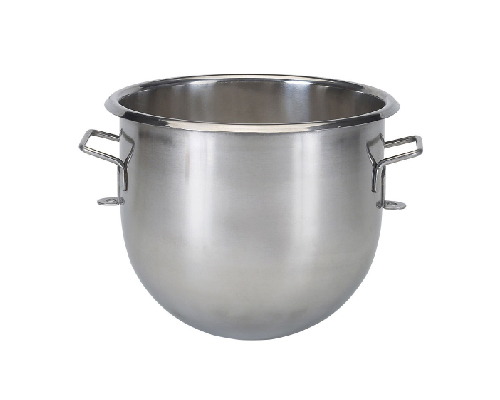

Larger bowl options

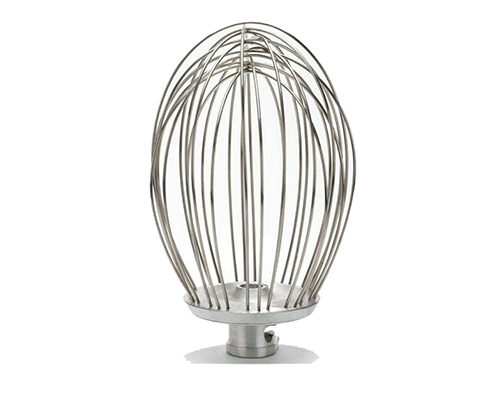

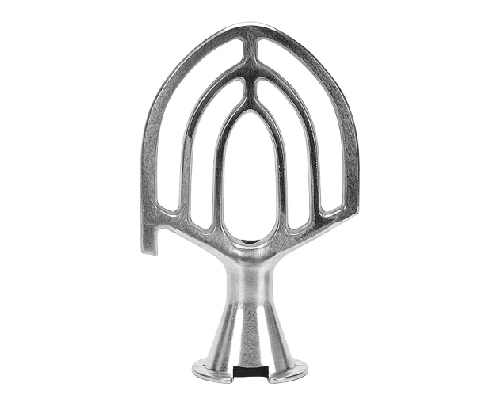

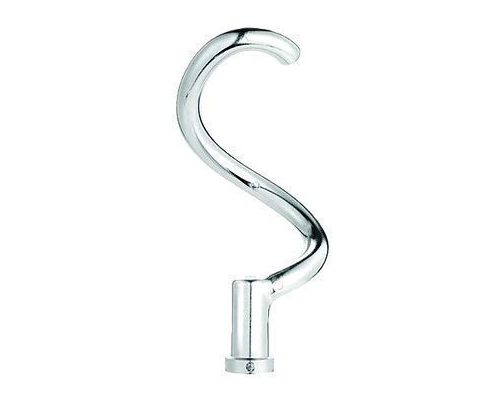

Hook, beater, whip tooling
Designed for production rooms
Before requesting a quote
Four details that determine the right planetary & cake mixer.
Your product
Which of Bread dough, Cake batter, Cream mixing, Food processing — and what recipe range?
Required output
Batch size, batches per shift, and peak-day target.
Your site
Available footprint, access, power, fuel, water, and ventilation.
Operating reality
Operator skill, cleaning time, service access, and growth plan.
Related equipment
Complete the production line.
Buyer FAQ
Questions about buying a Planetary & Cake Mixer.
Clear answers now. Model-specific advice when you share your product, capacity, space and city.
Which bakery is the Planetary Mixer best suited for?
Built for bakeries that need consistent mixing, larger bowls, and dependable production cycles. Typical applications include Bread dough, Cake batter, Cream mixing. Final fit depends on batch size, daily output, space, and operator workflow.
What capacity or model of Planetary Mixer should I choose?
Choose from peak output rather than average sales alone. Share batch weight, batches per shift, product mix, and growth target so Kirthy can compare the right model without oversizing your investment.
What utilities and space does the Planetary Mixer require?
Power, ventilation, drainage, clearances, and floor loading vary by model. Kirthy confirms the selected model's dimensions and utility load before quotation so your site can be prepared correctly.
How much does a commercial Planetary Mixer cost in Chennai?
Pricing depends on capacity, configuration, brand, controls, accessories, installation scope, and delivery location. Request a model-matched quote to avoid comparing machines with materially different output or support.
Is installation and after-sales support available for the Planetary Mixer?
Yes. Kirthy can coordinate installation guidance, commissioning, operator handover, and after-sales support according to the equipment and project location. Confirm the included scope in your quotation.
Equipment fit plan
Need Planetary & Cake Mixer pricing or setup guidance?
Share the product, bakery size and city — we'll guide model selection, installation needs and service options.
