Spiral Dough Mixer
Spiral dough mixers develop gluten faster and cooler than planetary mixers, which is why bread, bun, pizza and pav producers rely on them for strong, elastic dough. Kirthy offers the heavy-duty BSM series (15–100 kg flour) with two-speed motors and a driven bowl, and the compact DH series (10–25 kg flour) with dual timers — both built for continuous daily production and supported by our Chennai service team.
Capacity matchedSized to your batch and peak-day output
Delivered & installedSite readiness checked before dispatch
Serviced from ChennaiSpares, service and operator guidance
Choose a series
Spiral Dough Mixer range
Each series is built for a different batch size and workload. Open a series to select a model and see its full specification.
Models
BM-15KGBM-25KGBM-50KGBM-75KGBM-100KG5 models

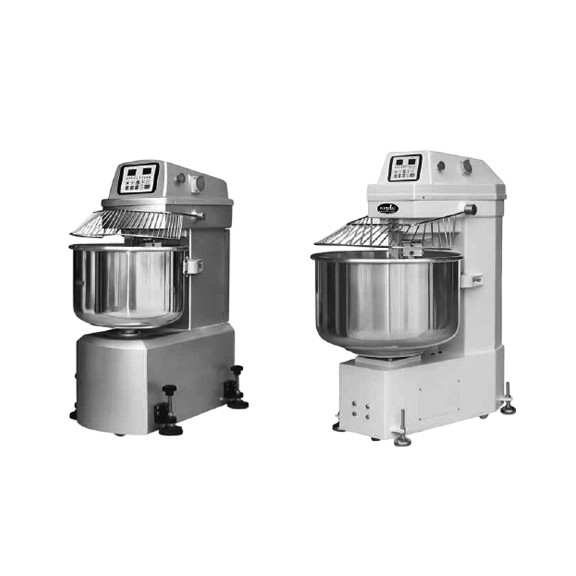

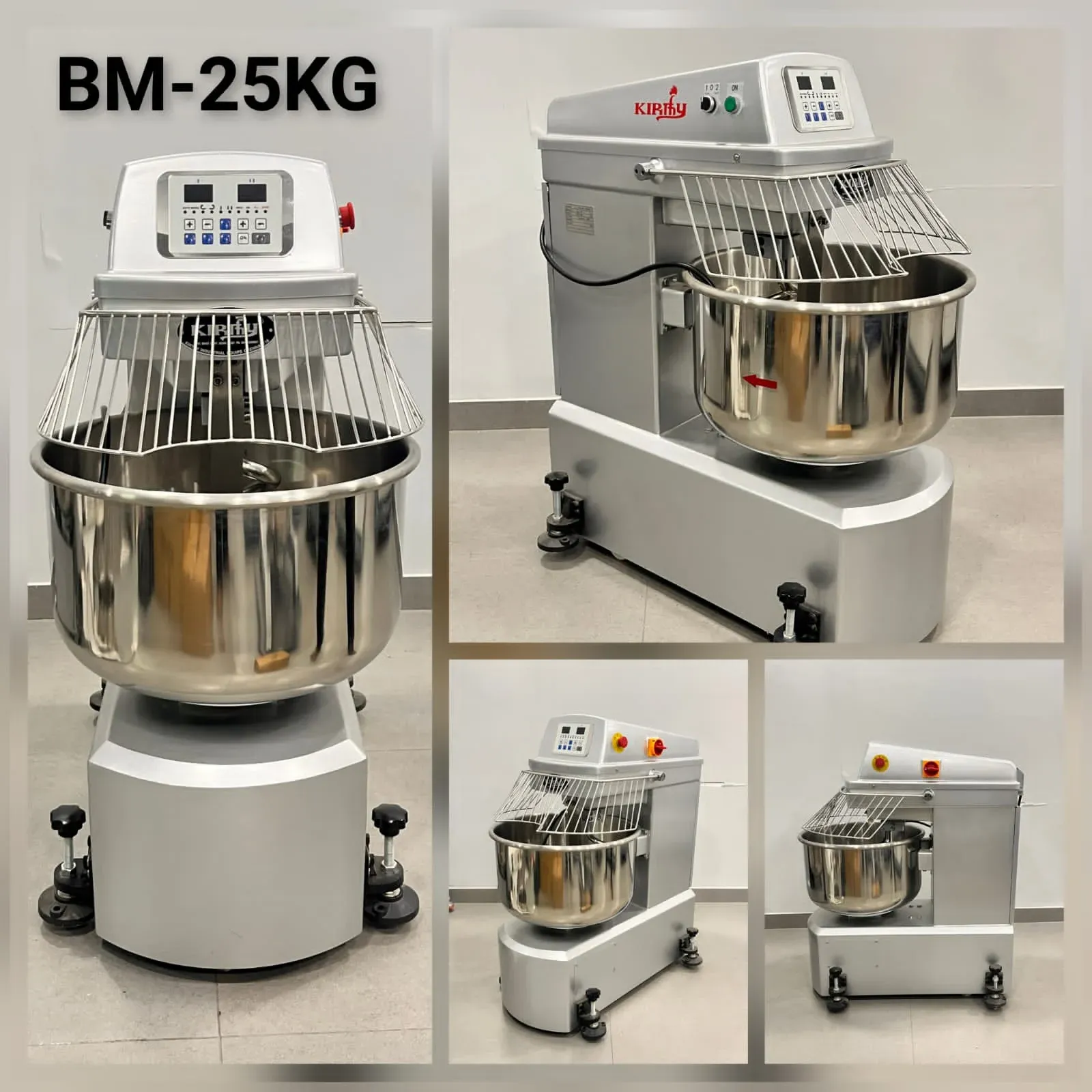

BSM Spiral Mixer
BSM heavy-duty spiral mixers for 15–100 kg of flour with two-speed motors and a driven bowl — built for bread, bun and pizza production.
View models Enquire
Models
DH-20DH-30DH-40DH-604 models

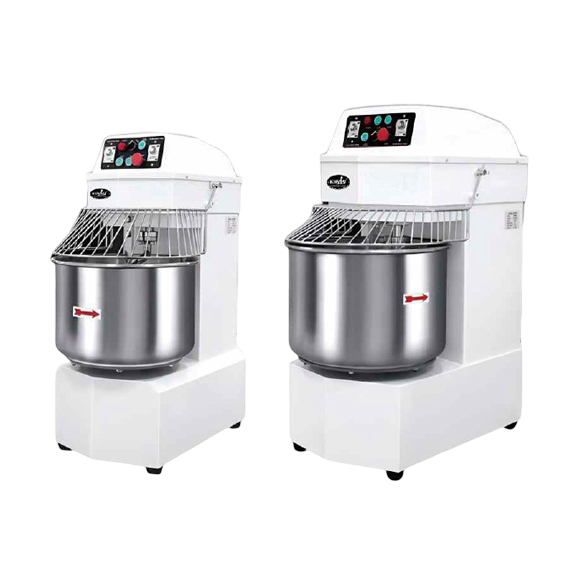

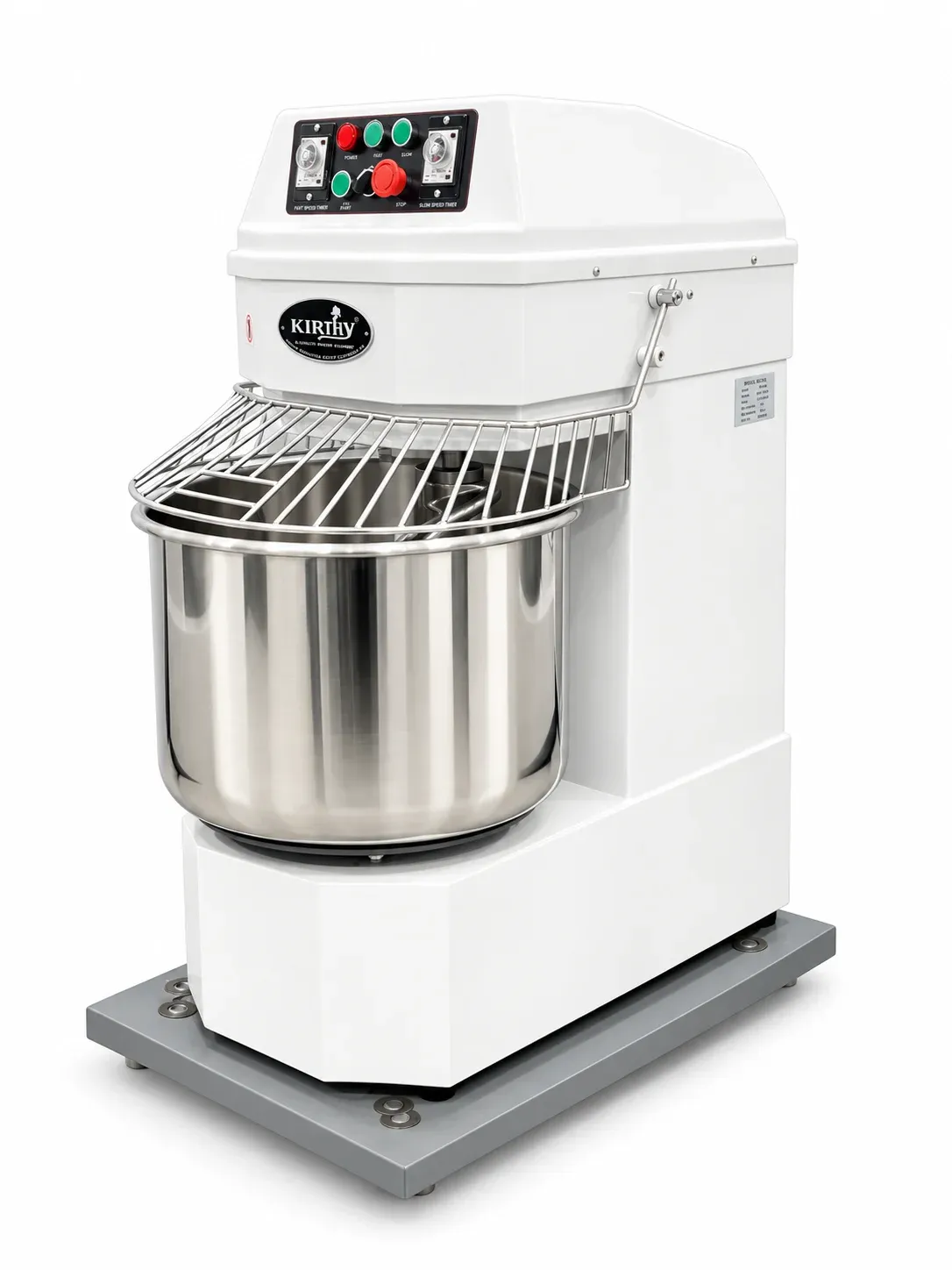

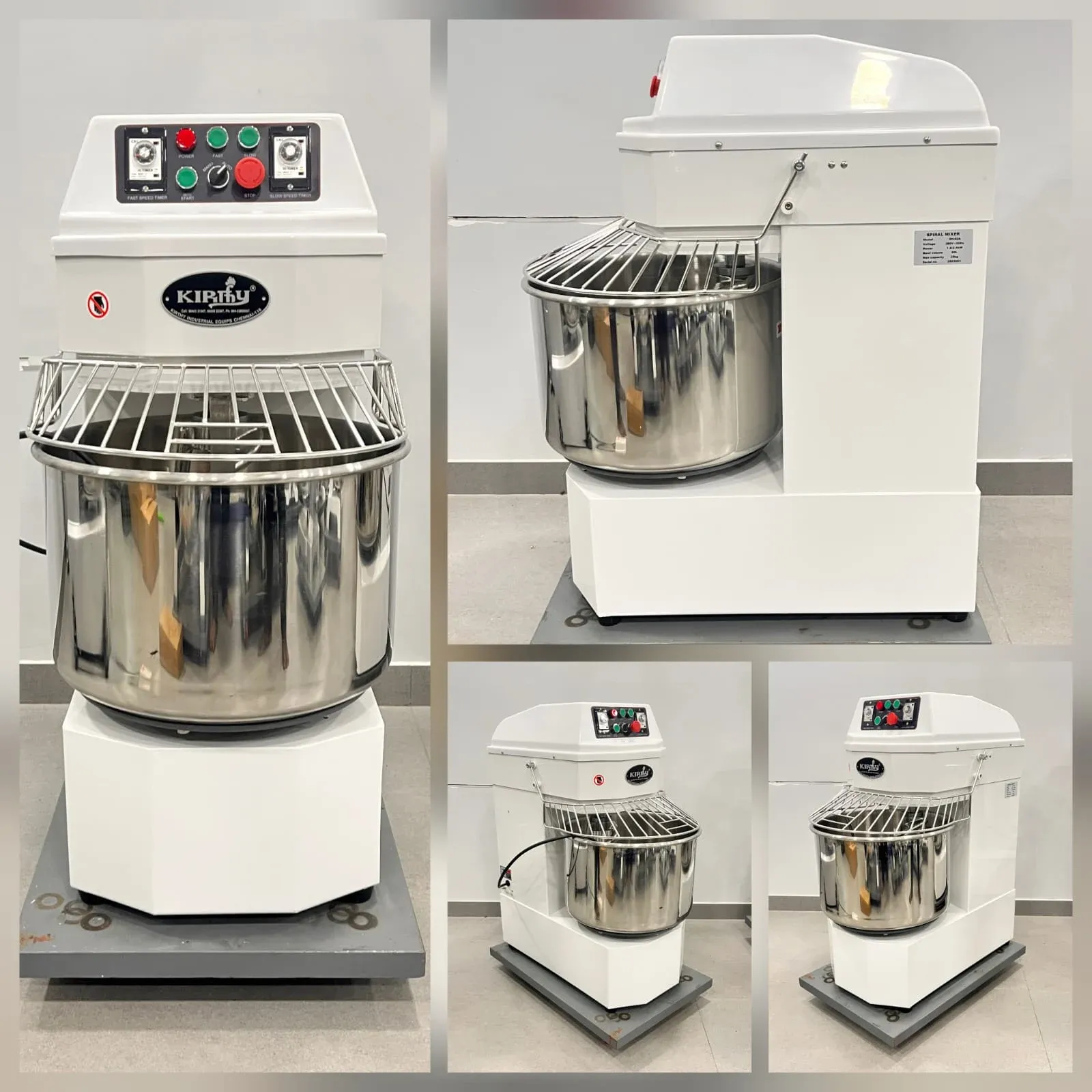

DH Spiral Mixer

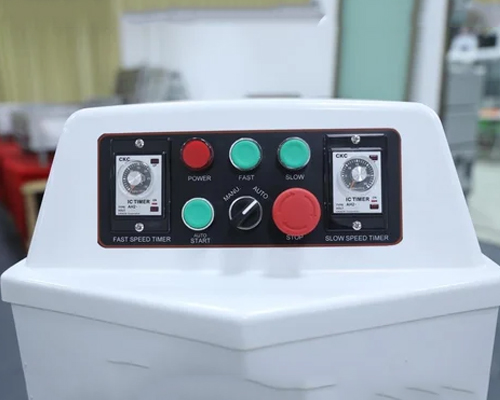

Compact DH spiral mixers for 6–25 kg of flour with separate fast and slow speed timers, perfect for growing bakeries and pizzerias.
View models Enquire
Models & Specs
Compare every spiral dough mixer model.

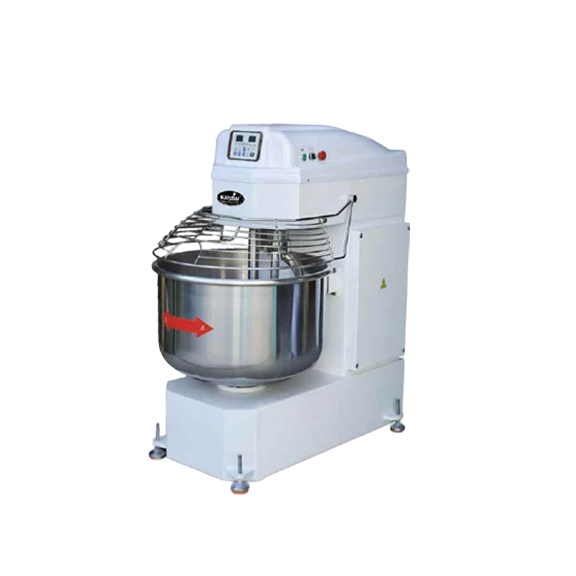

BSM Spiral Mixer
Select a modelSwipe to compare all 5 models
| Model | BM-15KG |  BM-25KG | BM-50KG | BM-75KG | BM-100KG |
|---|---|---|---|---|---|
| Voltage (V) | 380V | 380V | 380V | 380V | 380V |
| Power (kW) | 2.2 | 3.4 | 5.6 | 10.1 | 11 |
| Bowl Volume (L) | 50 | 80 | 130 | 200 | 260 |
| Max Flour Capacity (kg) | 15 | 25 | 50 | 75 | 100 |
| Mixing Speed (RPM) | 140/280 | 135/270 | 125/250 | 124/248 | 124/248 |
| N.W. (KG) | 175 | 300 | 420 | 690 | 740 |
| Dimension (mm) | 820*530*1060 | 900*625*1200 | 1120*720*1300 | 1350*810*1500 | 1440*900*1500 |
| Tank Speed (rpm) | 12.8/25.5 | 17.8 | 17.2 | 15 | 15 |
DH Spiral Mixer
Select a modelSwipe to compare all 4 models

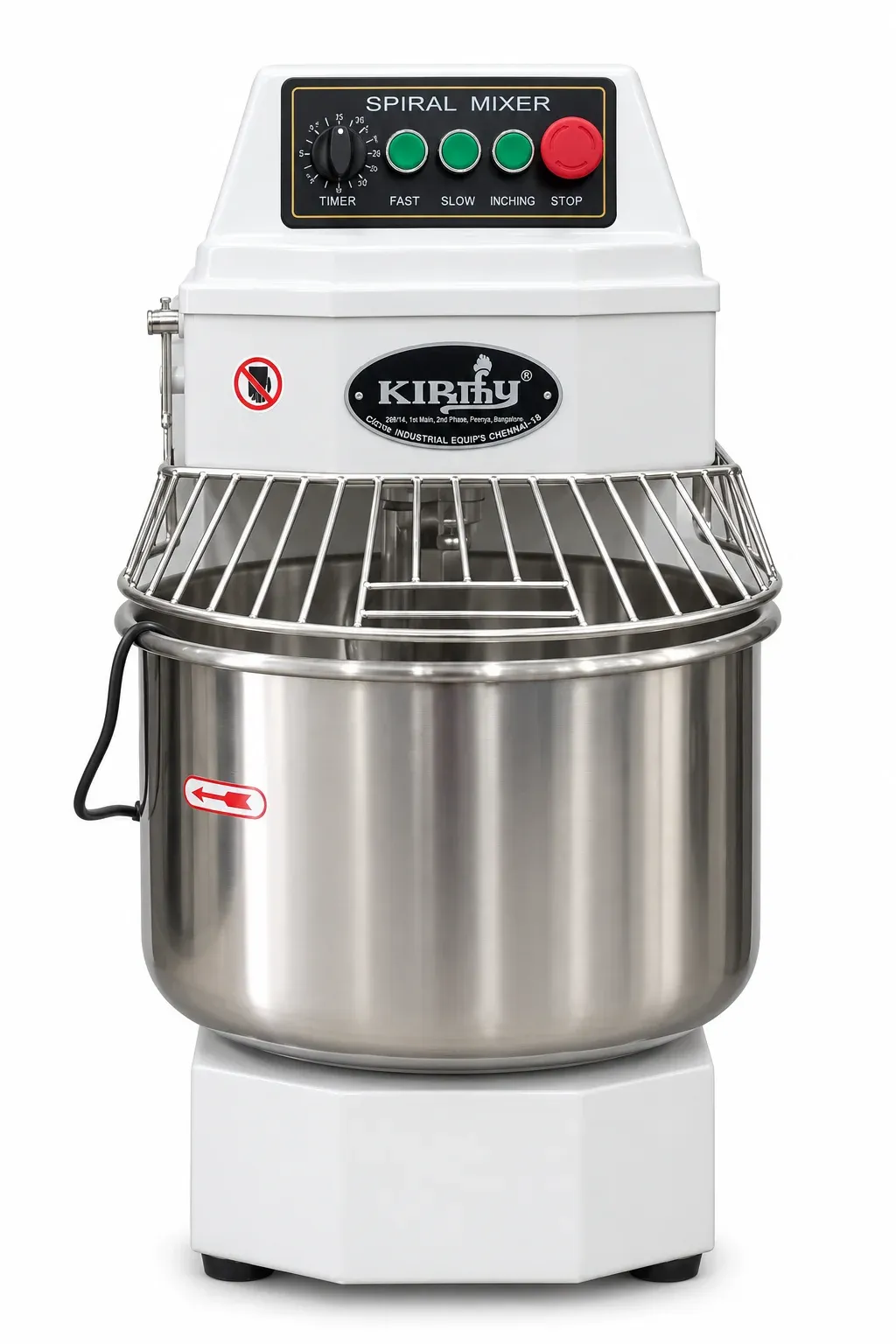

| Model | DH-20 |  DH-30 | DH-40 |  DH-60 |
|---|---|---|---|---|
| Voltage (V) | 220V | 220V | 220V / 380V | 380V |
| Power (kW) | 1.5 | 1.5 | 2.2 | 2.4 |
| Bowl Volume (L) | 20 | 30 | 40 | 60 |
| Max Flour Capacity (kg) | 6 | 10 | 15 | 25 |
| Mixing Speed (RPM) | 120/240 | 120/240 | 125/250 | 138/276 |
| N.W. (KG) | 103 | 103 | 133 | 195 |
| Dimension (mm) | 730*445*860 | 730*445*860 | 754*490*1055 | 876*526*1120 |
Capacity, dimensions, power load and available variants are confirmed against your chosen model before quotation.
Why buyers choose it
Built for real production decisions.
Best for

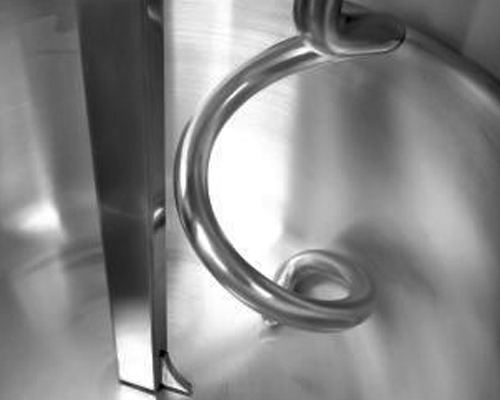

Strong spiral hook

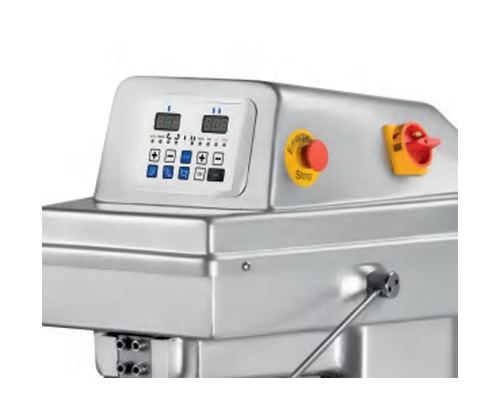

Digital controls
Uniform kneading
Production-grade construction
Before requesting a quote
Four details that determine the right spiral dough mixer.
Your product
Which of Bread, Pizza dough, Buns, Sweet dough — and what recipe range?
Required output
Batch size, batches per shift, and peak-day target.
Your site
Available footprint, access, power, fuel, water, and ventilation.
Operating reality
Operator skill, cleaning time, service access, and growth plan.
Related equipment
Complete the production line.
Buyer FAQ
Questions about buying a Spiral Dough Mixer.
Clear answers now. Model-specific advice when you share your product, capacity, space and city.
Which bakery is the Spiral Dough Mixer best suited for?
Ideal for bakeries that need strong dough structure and controlled kneading without overheating. Typical applications include Bread, Pizza dough, Buns. Final fit depends on batch size, daily output, space, and operator workflow.
What capacity or model of Spiral Dough Mixer should I choose?
Choose from peak output rather than average sales alone. Share batch weight, batches per shift, product mix, and growth target so Kirthy can compare the right model without oversizing your investment.
What utilities and space does the Spiral Dough Mixer require?
Power, ventilation, drainage, clearances, and floor loading vary by model. Kirthy confirms the selected model's dimensions and utility load before quotation so your site can be prepared correctly.
How much does a commercial Spiral Dough Mixer cost in Chennai?
Pricing depends on capacity, configuration, brand, controls, accessories, installation scope, and delivery location. Request a model-matched quote to avoid comparing machines with materially different output or support.
Is installation and after-sales support available for the Spiral Dough Mixer?
Yes. Kirthy can coordinate installation guidance, commissioning, operator handover, and after-sales support according to the equipment and project location. Confirm the included scope in your quotation.
